U Channel Steel Dimensions & Steel U Channel Sizes Guide
U channel steel is a widely used structural steel product in construction, infrastructure, and industrial fabrication. With its U-shaped cross-section, it provides excellent load-bearing capacity, easy installation, and high versatility. Choosing the correct u channel steel dimensions is essential for structural safety, durability, and cost efficiency.
Shineyond Group is a professional steel manufacturer and exporter, supplying high-quality U channel steel in standard and customized sizes for global construction projects, especially in infrastructure and building applications.

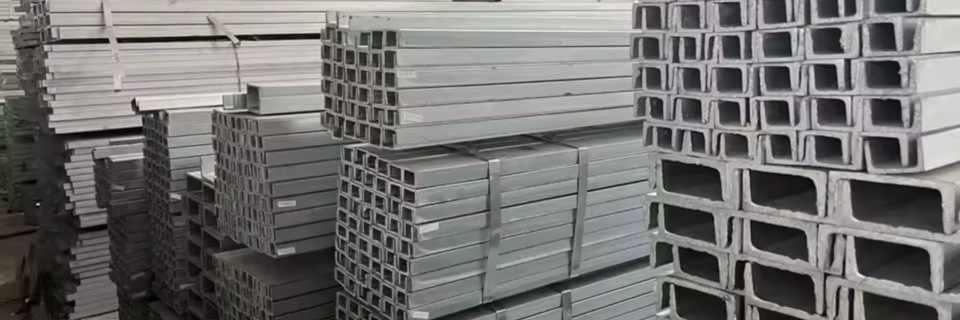

What Is U Channel Steel?
U channel steel, also known as steel U channel, features a U-shaped cross-section with two parallel flanges and a flat web. It is typically produced by hot rolling or cold forming and can be supplied as carbon steel or galvanized steel for enhanced corrosion resistance.
At Shineyond Group, U channel steel products are manufactured under strict quality control, ensuring accurate dimensions, stable mechanical properties, and consistent performance.
What Are the Standard Steel U Channel Sizes?
Steel U channel sizes are defined by three key dimensions:
Web Height (H) – the overall depth of the channel
Flange Width (B) – the width of the side flanges
Thickness (T) – the thickness of the web and flanges
Shineyond Group supplies steel U channels in accordance with common international standards such as ASTM, EN, JIS, and GB, meeting the needs of different markets.
U Channel Steel Dimensions Chart (Common Sizes)
Below is a commonly used steel u channel size chart supplied by Shineyond Group:
| U Channel Size | Web Height (mm) | Flange Width (mm) | Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|
| U50 | 50 | 25 | 3.0 | 3.80 |
| U65 | 65 | 30 | 3.5 | 5.00 |
| U80 | 80 | 40 | 4.0 | 7.05 |
| U100 | 100 | 50 | 5.0 | 10.60 |
| U120 | 120 | 55 | 5.5 | 13.40 |
| U140 | 140 | 60 | 6.0 | 16.40 |
| U160 | 160 | 65 | 6.5 | 19.90 |
| U180 | 180 | 70 | 7.0 | 23.80 |
| U200 | 200 | 75 | 8.0 | 29.80 |
Note: Actual dimensions and weights may vary slightly depending on production standards and tolerances.
Galvanized Steel U Channel Sizes
For outdoor, coastal, or humid environments, galvanized steel U channels are highly recommended. These products follow the same u channel steel dimensions as carbon steel but feature a zinc coating for long-term corrosion protection.
Shineyond Group offers hot-dip galvanized U channel steel in popular sizes such as:
U50 × 25 × 3.0 mm
U80 × 40 × 4.0 mm
U100 × 50 × 5.0 mm
U120 × 55 × 5.5 mm
U160 × 65 × 6.5 mm
Custom zinc coating thickness and length can also be provided.
Applications of Steel U Channel Sizes
U Channel Size Range | Typical Applications |
Small (U50–U80) | Light frames, brackets, equipment supports |
Medium (U100–U140) | Building frames, wall supports, machinery bases |
Large (U160–U200) | Bridges, platforms, heavy steel structures |
Shineyond Group U channel steel products are widely used in residential buildings, warehouses, factories, solar structures, and infrastructure projects.
How to Choose the Right U Channel Steel Dimensions?
When selecting steel u channel sizes, consider the following:
✅ Load Requirements – Larger channels support heavier loads
✅ Span Length – Longer spans require deeper channels
✅ Environment – Choose galvanized U channels for corrosion resistance
✅ Installation Method – Welding or bolting affects thickness selection
✅ Project Standards – Always comply with engineering codes
Pro Tip: For most construction projects, U100 to U140 U channel steel offers an excellent balance between strength and cost.
Why Choose Shineyond Group?
✅ Wide range of steel U channel sizes
✅ Carbon steel & galvanized options available
✅ Stable quality and precise dimensions
✅ Competitive factory pricing
✅ Reliable export experience for global markets
Shineyond Group also supplies rebars, steel pipes, steel coils, steel sheets, and other structural steel products for one-stop sourcing.
FAQs About U Channel Steel Sizes
Q1: What is the most common U channel steel size?
A: U100 and U120 are among the most commonly used sizes in construction projects.
Q2: Can Shineyond Group supply customized U channel steel dimensions?
A: Yes. Shineyond Group provides customized sizes, thicknesses, lengths, and surface treatments.
Q3: What is the difference between U channel and C channel steel?
A: U channels have parallel flanges, while C channels may have tapered or uneven edges depending on standards.
Q4: Are galvanized U channel steel sizes the same as carbon steel?
A: Yes. The dimensions are the same; the difference lies in the zinc coating for corrosion protection.
Conclusion
Understanding u channel steel dimensions and steel u channel sizes helps ensure safe, efficient, and cost-effective construction. Whether for light structural frames or heavy industrial projects, selecting the right U channel size is critical.
For high-quality steel U channel products with reliable dimensions and global supply capability, Shineyond Group is your trusted partner.
