- Product Description
-
Painted steel coil is mainly based on hot-dip galvanized steel, electro-galvanized sheet and other materials, covered with one or more layers of organic coating after surface pretreatment (chemical degreasing and chemical conversion treatment), and then baked and cured to form a finished product. Color, gloss, coating type, etc. can be customized according to needs. Painted steel coil has corrosion resistance, weather resistance and formability, smooth surface finish, and long service life.
Painted steel coil Specification
Material
Cold rolled steel sheet, Hot-dip galvanized steel sheet, electro galvanized steel sheet, hot-dip galvalume steel sheet, etc
Standard
ASTM A755/A755M、EN 10169、JIS G 3312, etc
Grade
SGCC,SGCH,G550,DX51D,DX52D,DX53D,etc
Paint Film
Right side15-35microns，Reverse side5-10microns
Color
RAL Color（Red，Green,Blue,Yellow,etc）
Thickness
0.12-1.2mm
Width
600-1250mm（Other sizes can be customized）
Inner Diameter
508/610mm
Coil Weight
3-8tons or according to customer requirements
Surface Treatment
Anti-Finger Print
MOQ
None
Delivery Time
In stock
Package
Standard export package

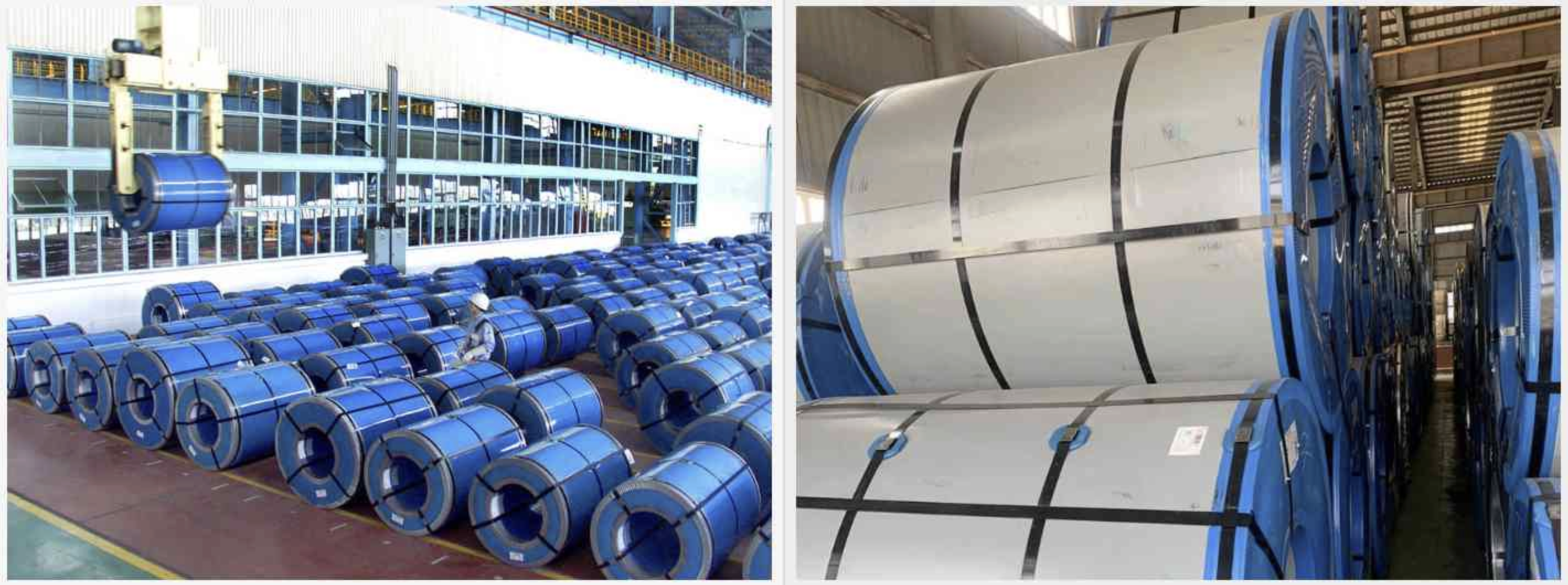

Painted steel coil Packaging diagram
Painted steel coil Material of pigment
The coating materials are mainly organic coatings, including polyester (PE), silicone-modified polyester (SMP), high-durability polyester (HDP), or polyvinylidene fluoride (PVDF). Steel coils can have a variety of colors and varying degrees of corrosion and stain resistance. PVDF steel coils are able to maintain color and performance for a long time in harsh outdoor environments.
Painted steel coil Type of coating structure
2/1: Coat the top surface of the steel sheet twice, coat the back surface once, and bake the sheet twice.
2/1M: Coat and bake twice for both top surface and back surface.
2/2: Coat the top/back surface twice and bake twice.
Features of Painted Steel Coil
1. Strong corrosion resistance: Multi-layer organic coatings provide long-lasting rust and oxidation resistance.
2. Strong adhesion performance: The coating and substrate are firmly bonded, avoiding peeling, cracking, and fading.
3. Strong formability: easy to bend, cut and form, do not damage the coating, suitable for various processing methods.
4. Support customization: A variety of colors, gloss and finishes can be customized according to needs, which can meet different usage needs.
5. Weather and UV resistance: It can maintain color and luster even after long-term use in harsh environments.
6. Environmental protection: The material meets international environmental protection standards and quality, low VOC coating.
