- Product Description
-
Welded Steel Pipe is manufactured by forming steel strips or plates into a round or square shape and joining the edges through welding. It offers stable quality, consistent dimensions, and flexible length options. With mature production technology and strict quality control, welded steel pipe is widely used in construction, infrastructure, water transmission, and general engineering projects, providing a cost-effective and reliable solution for various applications.
Welded Steel Pipe Types
Welded Steel Pipe Types mainly include three categories: ERW (Electric Resistance Welded), LSAW (Longitudinal Submerged Arc Welded), and SSAW (Spiral Submerged Arc Welded) pipes. ERW pipes are produced by resistance welding and are widely used for general structural and mechanical applications. LSAW pipes are manufactured with a straight longitudinal weld, offering high strength and precise dimensions for high-pressure and large-diameter projects. SSAW pipes are formed with a spiral weld, providing flexible diameters and good load-bearing capacity, making them suitable for long-distance pipelines and infrastructure works.
Classification of Welded Steel Pipe
According to Weld Seam Form

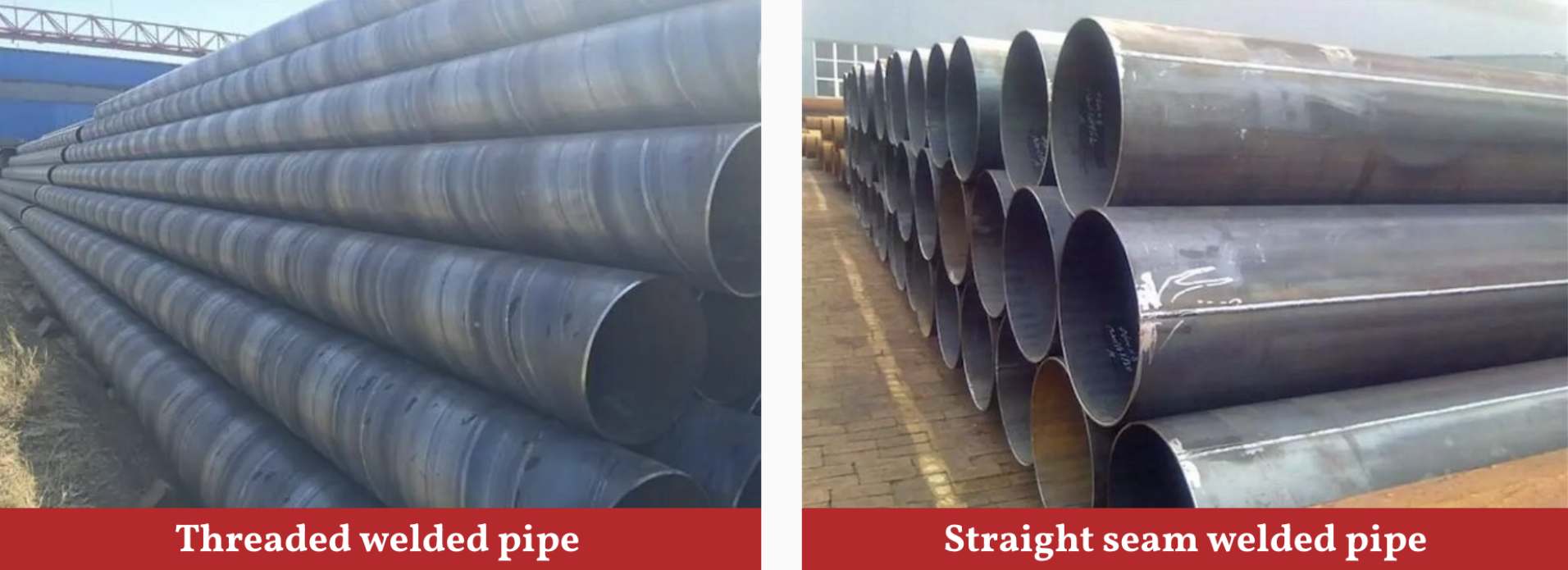

Welded steel pipes are classified into straight seam welded pipes and spiral welded pipes based on the form of the weld.
Straight seam welded pipes feature a simple production process, high manufacturing efficiency, low cost, and rapid industrial development.
Spiral welded pipes generally offer higher overall strength than straight seam welded pipes. They allow the use of narrower steel strips to produce pipes with larger diameters, and the same strip width can be used to manufacture pipes of different diameters. However, compared with straight seam pipes of the same length, spiral welded pipes have a weld seam that is 30–100% longer, resulting in relatively lower production speed. Therefore, straight seam welding is mainly used for small-diameter pipes, while spiral welding is preferred for large-diameter pipes.
Classification by Welding Method
According to the welding process, welded steel pipes can be divided into:
Arc welded pipes
Resistance welded pipes (high-frequency and low-frequency)
Gas welded pipes
Furnace welded pipes
Submerged arc welded (SAW) pipes
Downward welded pipes
Classification by Pipe End Shape

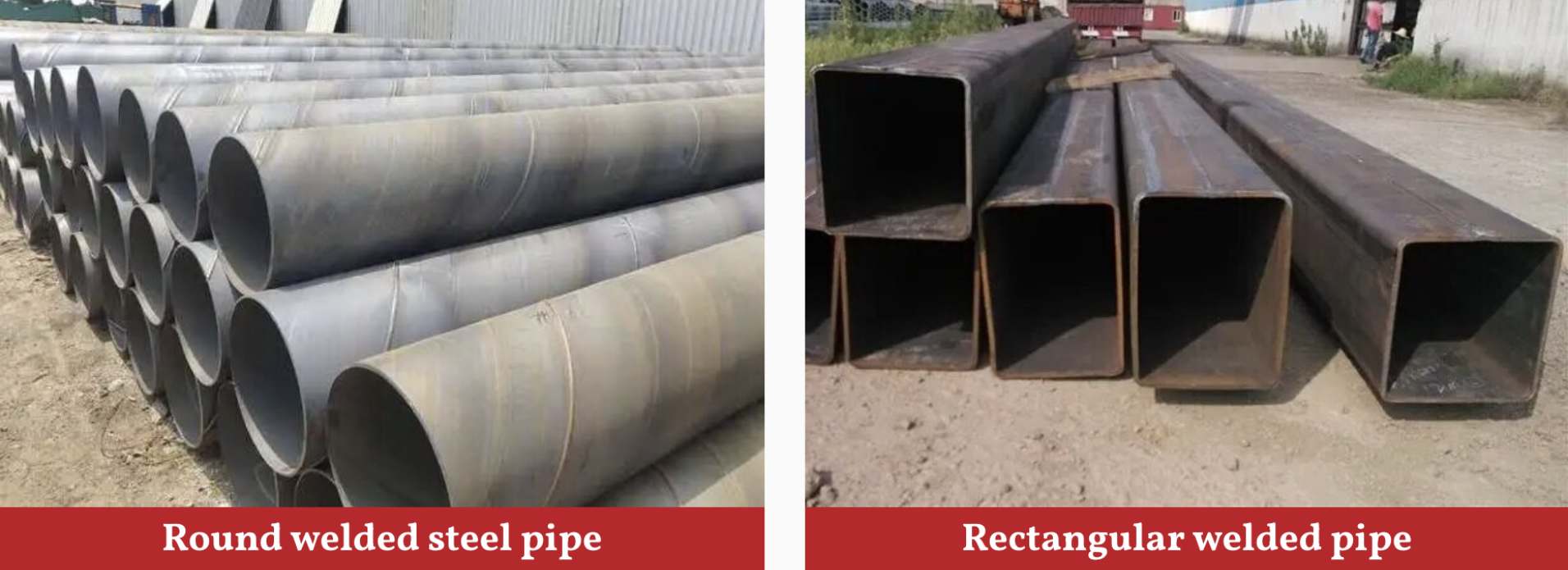

Based on shape, welded steel pipes include round welded pipes and special-shaped welded pipes, such as square, rectangular, triangular, and diamond sections.
Classification by Material and Purpose
When classified by material and application, welded steel pipes include:
Welded pipes for mining and fluid transportation
Galvanized welded pipes for low-pressure fluid transportation
Electric welded pipes for belt conveyor rollers
Low-pressure fluid transportation welded steel pipes, commonly known as black pipes, are used to convey water, gas, air, oil, heating steam, and other low-pressure fluids. In addition to direct fluid transport, they are also widely used as base pipes for galvanized welded pipes.
Classification by Application
According to end use, welded steel pipes can be divided into:
General welded pipes
Galvanized welded pipes
Oxygen-blown welded pipes
Wire casing pipes
Metric welded pipes
Roller pipes
Deep well pump pipes
Automobile pipes
Transformer pipes
Electric welded thin-walled pipes
Electric welded special-shaped pipes
Scaffolding pipes
Spiral welded pipes

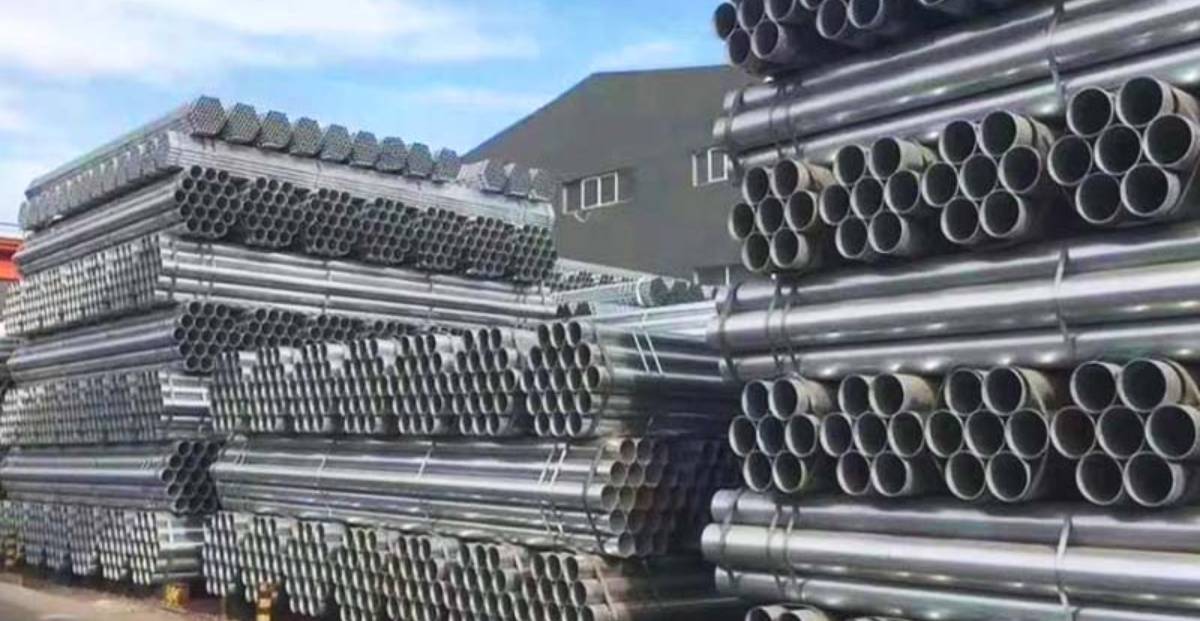

Round welded steel pipe specification
Outer diameter
Wall thickness
length
MOQ
Packing
Delivery time
20mm;25mm;32mm;40mm;
48mm;60mm;76mm;89mm;
108mm;114mm;133mm;
159mm;165mm;219mm;
1mm-6.25mm
4m-12m or other length for you requirement
None
Bundles or bulk
In stock
Common size
Schedute number
Nominal Size
(inches)
Outer diameter
(mm)
Wall thickness
(mm)
Weight(black pipe)
(kg/m)
40
1/2
21.3
2.77
1.27
40
3/4
26.7
2.87
1.69
40
1
33.4
3.38
2.50
40
1-1/4
42.2
3.56
3.39
40
1-1/2
48.3
3.68
4.05
40
2
60.3
3.91
5.44
40
2-1/2
73.0
5.16
8.63
40
3
88.9
5.49
11.29
40
4
114.3
6.02
16.07

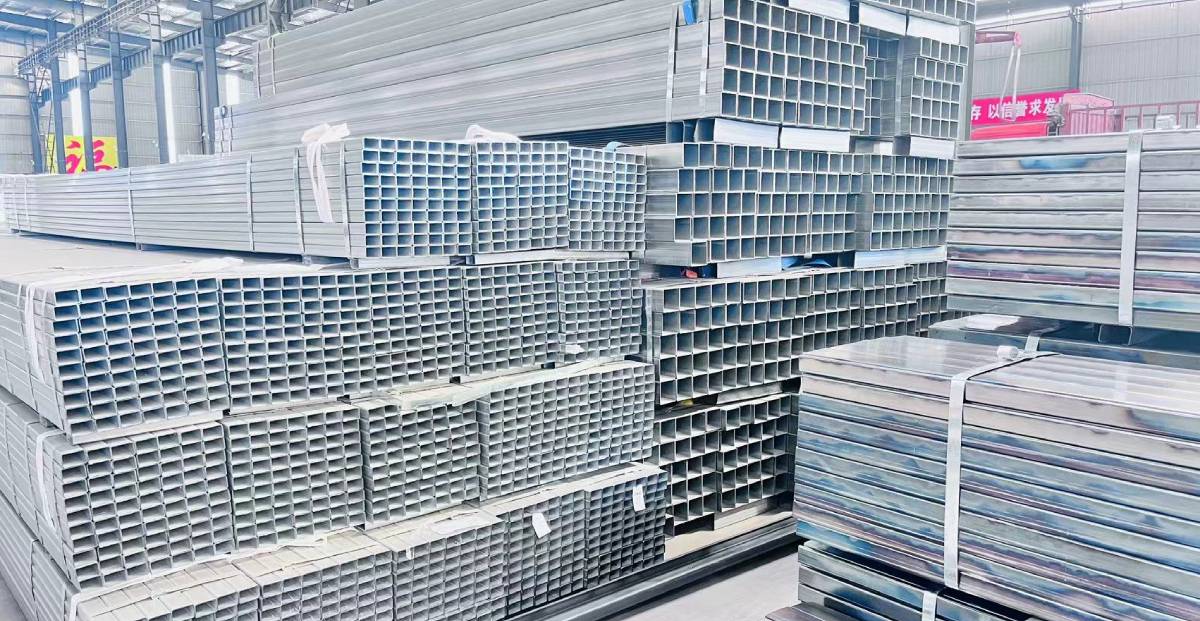

Square welded steel pipe specification specification
Outer diameter
Wall thickness
length
MOQ
Packing
Delivery time
10mm-200mm
0.5mm-9mm
6m-12m or other customized size
30tons
Bundles
Or bulk
7-30days
Common size
Size
(mm)
Length
(m)
Weight
(kg)
Packing
(pcs/bundle)
30×50×1.5
6
1120
104
30×50×1.7
6
1190
104
30×50×1.8
6
1330
104
30×50×2.0
6
1380
104
30×50×2.2
6
1640
104
30×50×2.5
6
1820
104
40×60×1.5
6
910
70
40×60×1.7
6
1030
70
40×60×1.8
6
1095
70
40×60×2.0
6
1200
70
40×60×2.2
6
1274
70
40×60×2.5
6
1480
70
40×40×1.5
6
1088
100
40×40×1.7
6
1226
100
40×40×1.8
6
1300
100
40×40×2.0
6
1431
100
40×40×2.2
6
1566
100
40×40×2.5
6
1766
100
50×50×1.5
6
860
64
50×50×1.7
6
968
64
50×50×1.8
6
1016
64
50×50×2.0
6
1038
64
50×50×2.2
6
1268
64
50×50×2.5
6
1386
64
40×80×1.5
6
830
50
40×80×1.7
6
918
50
40×80×1.8
6
896
50
40×80×2.0
6
1068
50
40×80×2.2
6
1178
50
40×80×2.5
6
1354
50
100×150×4.5
6
1224
12
100×150×4.75
6
1290
12
100×150×5.5
6
1486
12
100×150×5.75
6
1580
12
100×150×7.5
6
1988
12
100×150×7.75
6
2054
12
100×200×4.5
6
986
8
100×200×4.75
6
1040
8
100×200×5.5
6
1980
8
100×200×5.75
6
1248
8
100×200×7.5
6
1610
8
100×200×7.75
6
1660
8
150×200×4.75
6
914
6
150×200×5.5
6
1053
6
150×200×5.75
6
1100
6
150×200×7.5
6
1430
6
150×200×7.75
6
1465
6
150×200×8.5
6
1618
6
150×150×4.5
6
1110
9
150×150×4.75
6
1178
9
150×150×5.5
6
1348
9
150×150×5.75
6
1410
9
150×150×7.5
6
1812
9
150×150×7.75
6
1890
9
Welded Steel Pipe Manufacturers
Welded Steel Pipe Manufacturers specialize in producing high-quality welded pipes using advanced forming, welding, and inspection technologies. They offer a wide range of products, including ERW, LSAW, and SSAW steel pipes, with various sizes, standards, and coatings to meet different project requirements. With strict quality control, stable production capacity, and efficient delivery, welded steel pipe manufacturers supply reliable solutions for construction, infrastructure, fluid transportation, and industrial applications worldwide.
