Steel Angle Iron

Shineyond Group specializes in manufacturing Steel Angle Iron, providing product quotations and free samples online

WhatsApp / Tel / Wechat

+86-18931829116

shineyondmetals@gmail.com

Inquire Now

Product Catalog

Still deciding? Get samples first, Contact US !

View similar products

Steel Section

Tag list

Building Angle steel Equal Angle steel Unequal Angle steel Building support structure Hot rolled Angle steel

Product Description

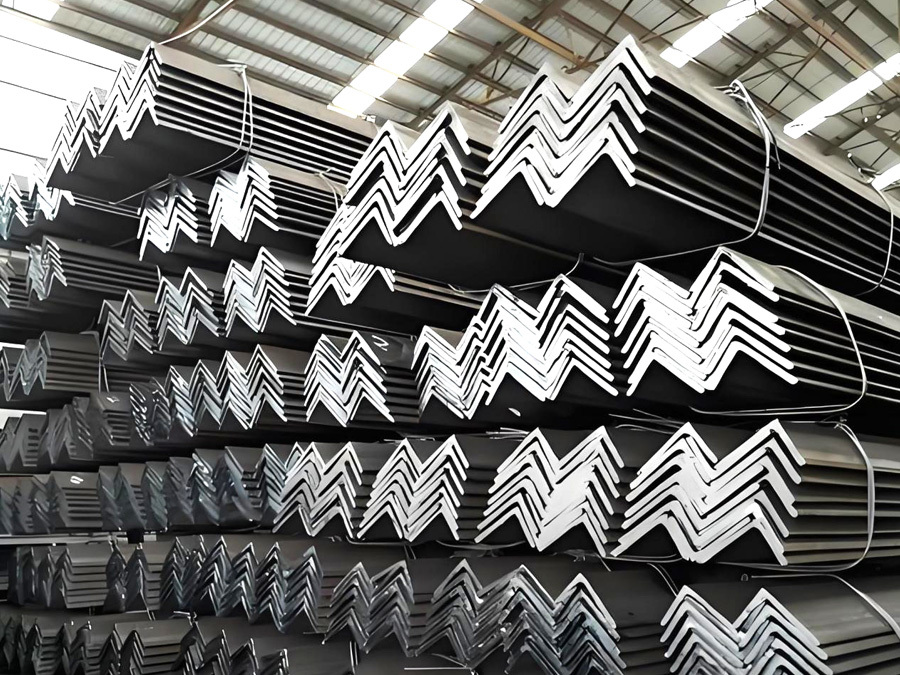

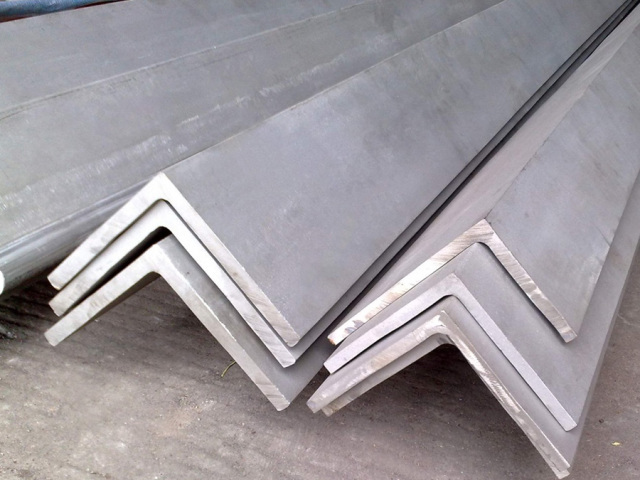

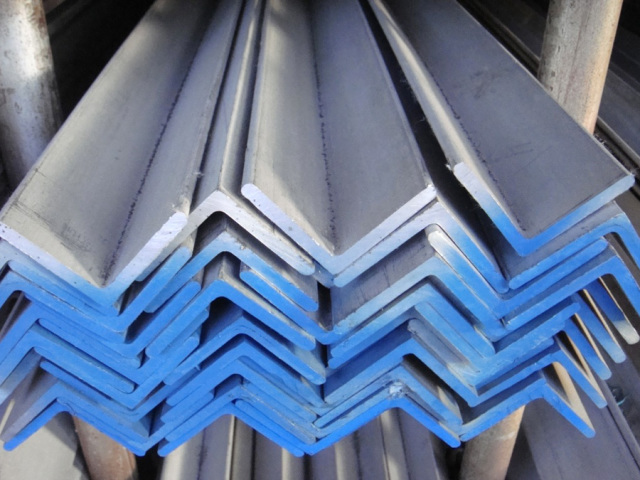

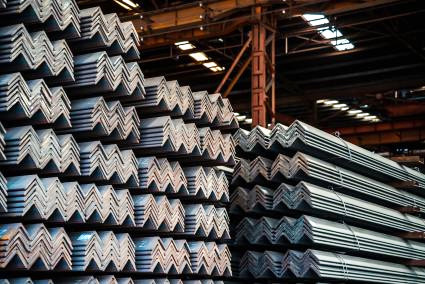

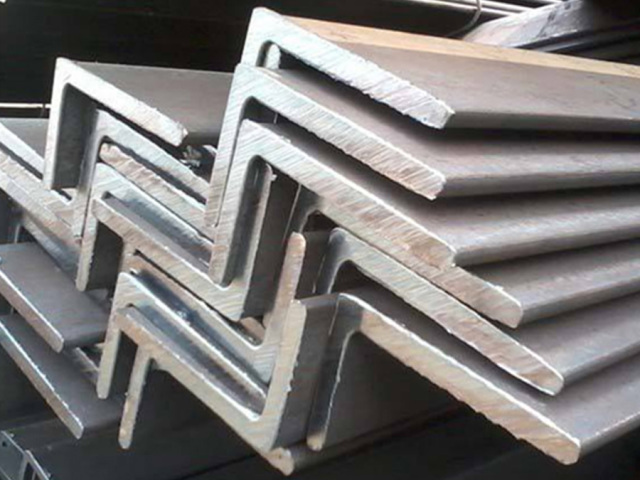

Angle steel, also known as angle iron, is a long strip of steel with a right-angled "L" shape in cross-section. There are equal and unequal angles. It is divided into two production processes: hot rolling and cold forming.

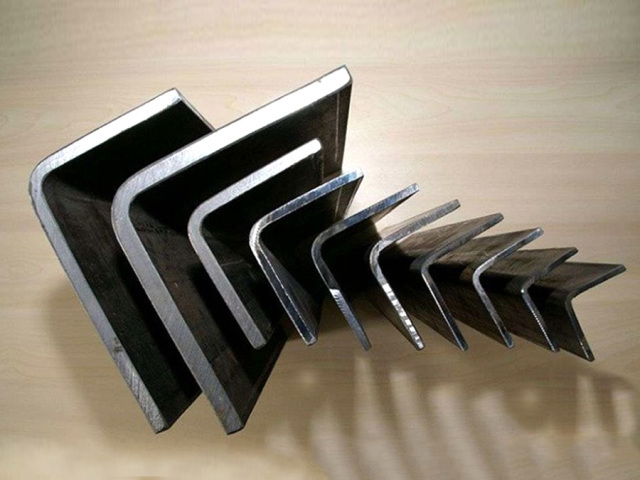

Angle steel has the characteristics of high-strength support, two-way stress, and convenient installation in applications, and common specifications range from 20×20mm to 200×200mm, with a thickness of 3-20mm.

Specification

The size and specification of the angle will vary according to different needs, the thickness of the angle is between 3mm and 10mm, the width is between 20mm and 200mm, and the length can be customized according to customer requirements.

Specifications	Description
Size	20mm x 20mm to 200mm x 200mm
Thick	3mm to 20mm
Wide	20mm to 200mm
Length	3m to 12m
Material	Q235、Q345、Q420 etc.
MOQ	25tons
Delivery time	About 15days
Packing	Strap

	Size	Qide（mm）	Thick（mm）	Legth（m）
Equal	20×20	20	3、4	3-9
	25×25	25	3、4	3-9
	30×30	30	3、4	3-9
	36×36	36	3、4、5	3-9
	40×40	40	3、4、5	3-9
	45×45	45	3、4、5、6	4-12
	50×50	50	3、4、5、6	4-12
	56×56	56	3、4、5、8	4-12
	63×63	63	4、5、6、7、8、10	4-12
	70×70	70	4、5、6、7、8	4-12
	75×75	75	5、6、7、8、10	4-12
	80×80	80	5、6、7、8、10	4-12
	90×90	90	5、6、7、8	4-19
	100×100	100	6、7、8、10、12、14、16	9-19
	110×110	110	7、8、10、12、14	4-19
	125×125	125	10、12、14	4-19
	140×140	140	10、12、14、16	4-19
	160×160	160	10、12、14、16	6-19
	180×180	180	12、14、16、18	6-19
	200×200	200	14、16、18、20、24	6-19
Unequal	2.5/16	25	16	3、4
	3.2/2	32	20	3、4
	4/2.5	40	25	3、4
	4.5/2.8	45	28	3、4
	5/3.2	50	32	3、4
	5.6/3.6	56	36	3、4、5
	6.3/4	63	40	4、5、6、7
	7/4.5	70	45	4、5、6、7
	7.5/5	75	50	5、6、8
	8/5	80	50	5、6、7、8
	9/5.6	90	56	5、6、7、8
	10/6.3	100	63	6、7、8、10

Material

Angle steel raw materials are generally used is Q195, 10 #, 20 #, 35 #, 45 #, Q215, Q235, 304, 316, 20Cr, 40Cr, 20CrMo, 35CrMo, 42CrMo, 40CrNiMo, GCr15, 65Mn, 50Mn, 50Cr, 3Cr2W8V, 20CrMnTi, 5CrMnMo, etc.

Applications

Steel Angle is widely used in building structure, craft decoration and other fields.

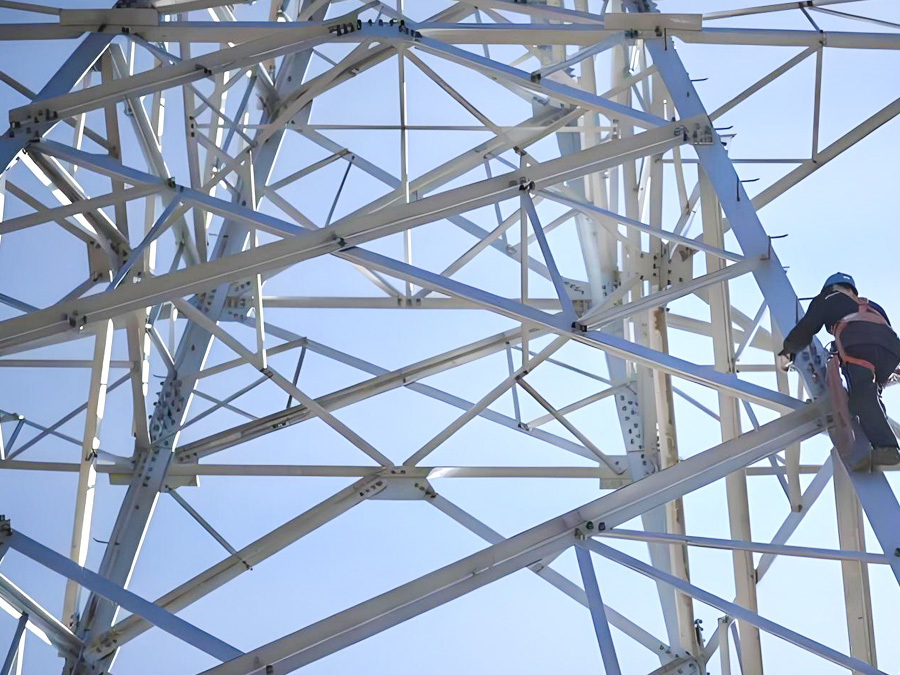

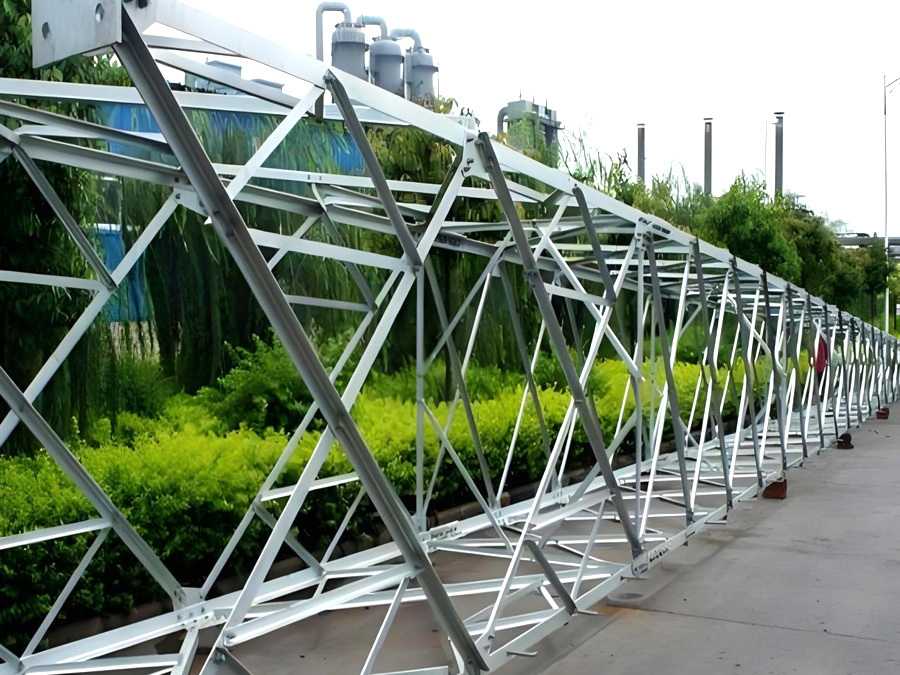

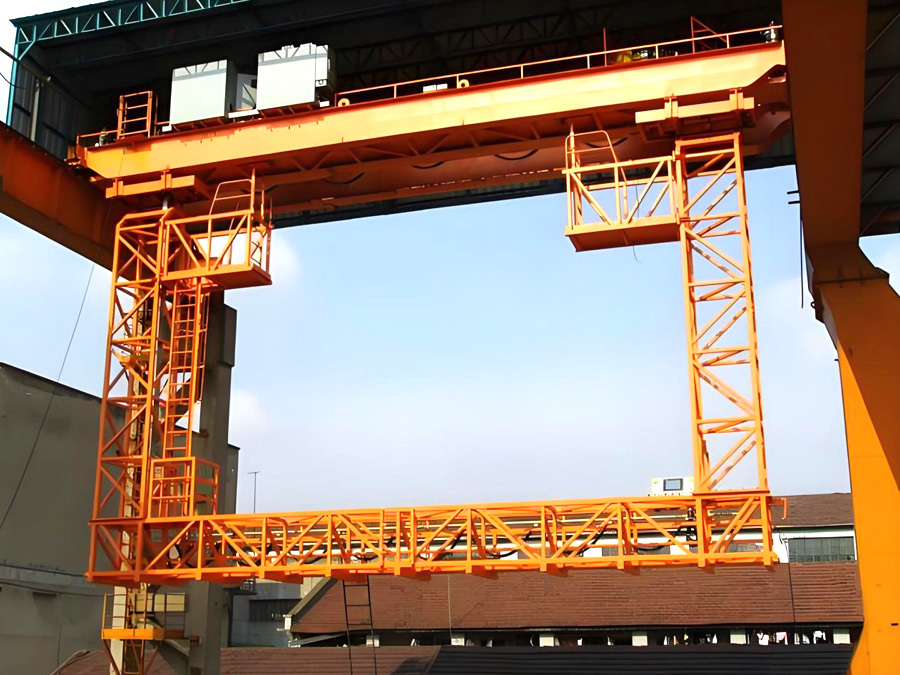

In the building structure, Angle Iron is often used to build the skeleton structure of the house, as an important part of the frame, can share the load of the building, increase the stability and load-bearing capacity of the building.

steel angles are also commonly used as protective facilities, such as stair handrails, railings, etc., and as building connectors.

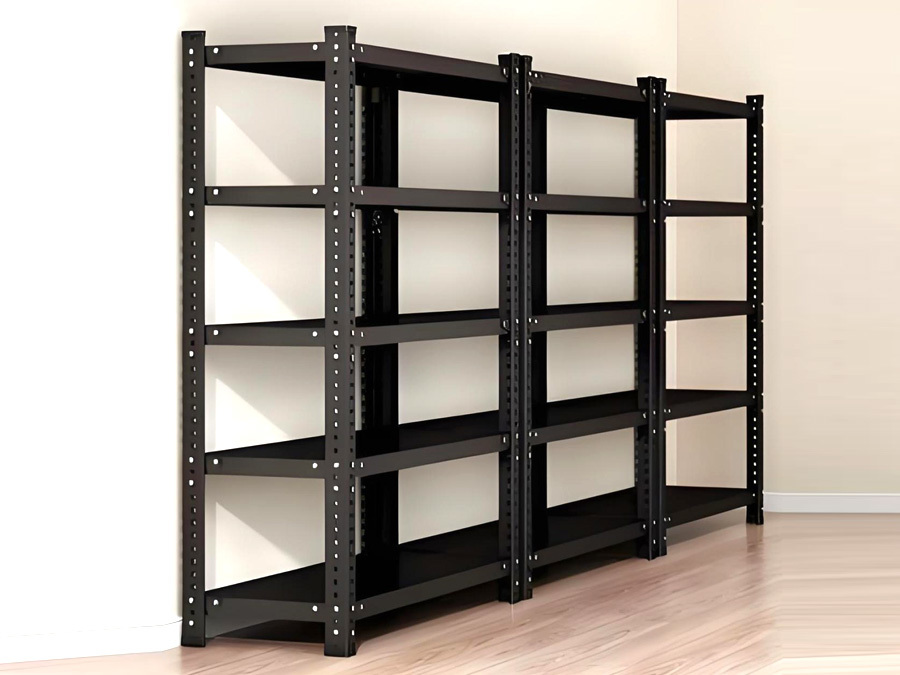

In craft decoration, steel metal angle is used as decorative edge lines, making decorations and furniture, as well as outdoor landscape decoration, such as garden fence, sculpture and so on.

Special craft

Hot-dip galvanizing: improves the corrosion resistance of the Steel Angle and prolongs its service life.
Aluminum zinc plating: combines the advantages of galvanizing and aluminum plating, with higher corrosion resistance and heat resistance.
Painting or powder coating: used to improve the aesthetics and weather resistance of the angle.
Cold Bending and Forming: Changing the shape of an angle by cold working to meet specific design requirements.

Advantages

High strength: Angle steel has high strength and rigidity, can withstand large loads and pressure, suitable for building structures and mechanical equipment.

Easy processing: Angle steel can be processed by cutting, welding and cold bending, which is highly flexible and convenient for construction and installation.

Corrosion resistance: stainless steel angle and galvanized angle has good corrosion resistance, can be used in wet environment and chemical substances corrosion of large places.

Beautiful appearance: stainless steel angle iron has good appearance effect, suitable for decoration and interior design.
